Exposed electrical control panels on ground level

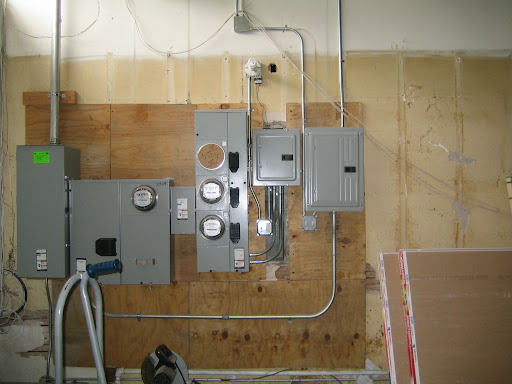

This is an electrical room for a commercial unit with two apartments.  There is a main disconnect coming from the electric company on the right. The disconnect will cut off power to the entire building. To the right of that there is the meter and disconnect for the commercial unit. The last set of meters, the three ganged vertically, is for the two apartments and the house lighting.

There are two electrical panels to the right of the metering equipment. The first one comes from the residential meters and power the house panel. The house panel is responsible for the hallway lights and the fire alarm. The last panel is for the commercial unit.
